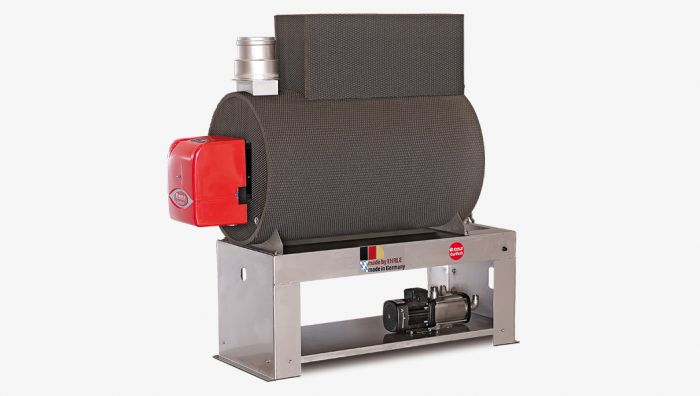

Heating module CW LCE-Gas 30-160kW Self Service-CW
Pressureless heating module stainless steel,
Article number
610451
Add to Favorites
Data
with modulating gas burner
- Heating boiler for gaseous fuels for water heating in EHRLE Self Service-CarWash systems
- with stainless steel chassis 1.4301
- for use with soft-water 0-4 grd dH
- Boiler capacity 180ltr - stainless steel 1.4301 with insulation
- Nominal heat output: 180kW - Condensing boiler according to DIN
- Modulating forced draught gas burner with type approval as a unit
- Condensate technology up to 106% efficiency
- according to EU Gas Appliances Directive EU/2016/426
- according to DIN EN 15502-2-1
- Ein-Aus Schalter
- Control by CarWash by external PLC
- Water level control 0-10V by external PLC
- Low-water cut off
- Temperature control 0-85 grd. C by external PLC
- Maximum temperature limiter 95 grd. C
- Low-Pressure booster pump CM3-5S 3AC400V 0,65kW
- Water capacity: 2.4-3.0 m³ / 3.0-3.5 bar max.90°C
- Connected load: 1,0kW
- Voltage: 3/PE/AC/50Hz/400V
- Dimensions: 1680x650x1500mm
- Weight: 240kg
